Report 57:
07.03.2006
Progress:

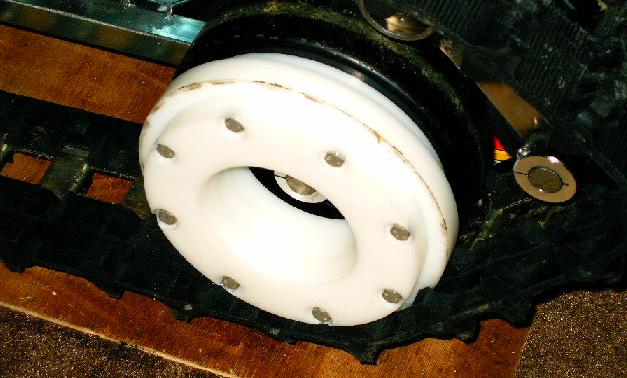

New wheels and power switch.
Time:
7 hours
|
 |
Report 56:
04.24.2006
Progress:

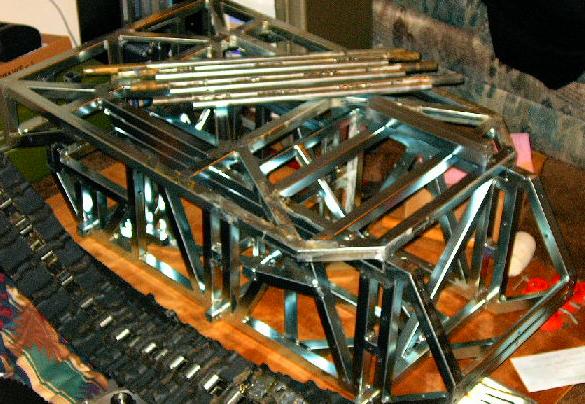

Stripped down and plated.
Time:
15 hours
|
 |
Report 55:
07.11.2005
Progress:
Fixed uMOB2 height issues, rebuilt laptop battery pack, fabricated new Lexan top plates
Time:
22 hours
|
 |
Report 54:
06.20.2005
Progress:

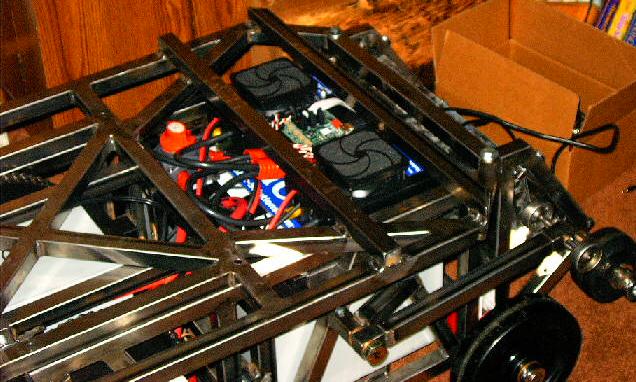

Mounted uMOB2, new VIA box shock mounts (iteration 1 and 2), two new top panel members
Time:
11 hours
|
 |
Report 53:
06.14.2005
Progress:
Constructed static tensioner arms, repaired tracks
Time:
4 hours
|
 |
Report 52:
05.24.2005
Progress:
A lot of work on the PWM interface, not a lot of results
Time:
27 hours
|
 |
Report 51:
05.19.2005
Progress:

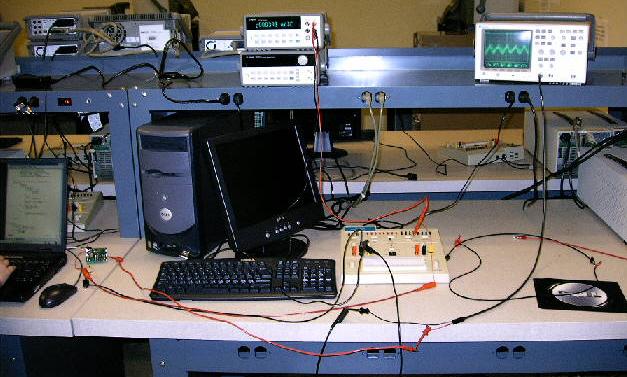

Built and tested the PWM coprocessor board
Time:
7 hours
|
 |
Report 50:
05.16.2005
Progress:

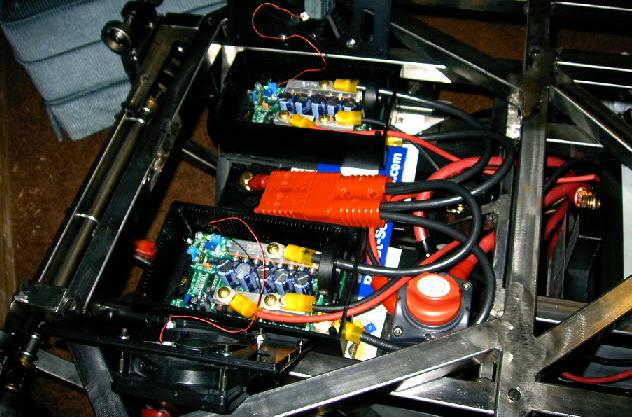

Shock mounted and wired the new speed controllers.
Time:
8 hours
|
 |
Report 49:
05.10.2005
Progress:
Stapled track, made new tensioner bars and speed controller mounts. Cut allowances in the top panel for the new controllers.
Time:
4 hours
|
 |
Day 48:
04.07.2005
Progress:

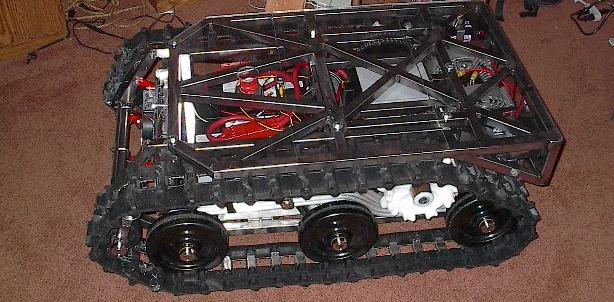

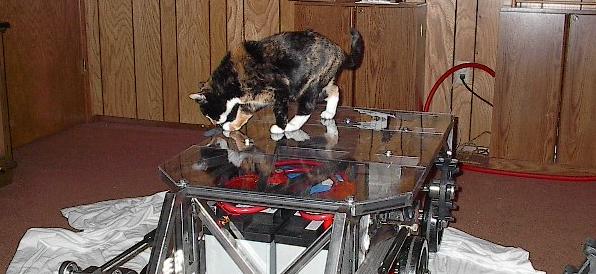

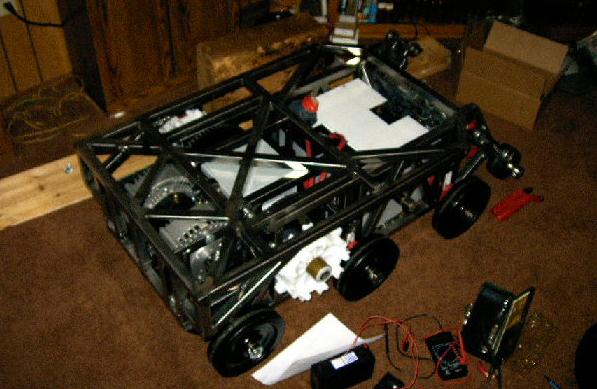

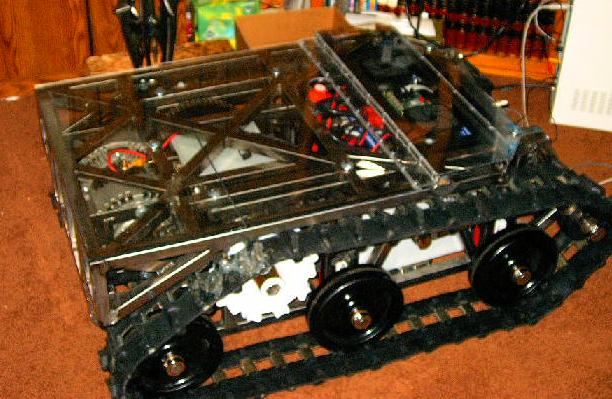

Finished final assembly.
Time:
8 hours
Status:
I think we made it.
|
 |
Day 47:
04.05.2005
Progress:

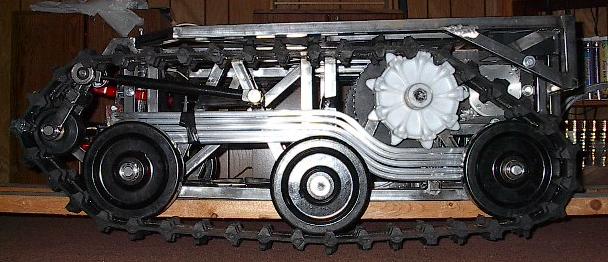

Installed track and computer system.
Time:
8 hours
Status:
We'll make it, provided the controller gets here Thursday morning
|
 |
Day 46:
04.02.2005
Progress:

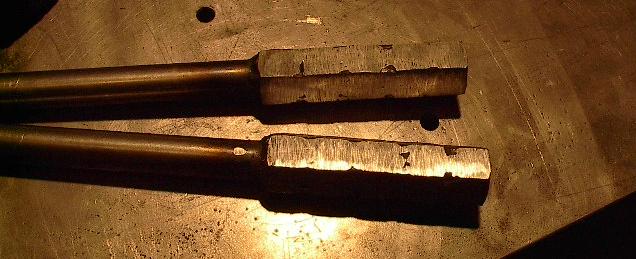

Ground drive axles to fit, did some wiring.
Time:
5 hours
Status:
Behind schedule, but I should be ready by Friday
|
 |
Day 45:
03.31.2005
Progress:

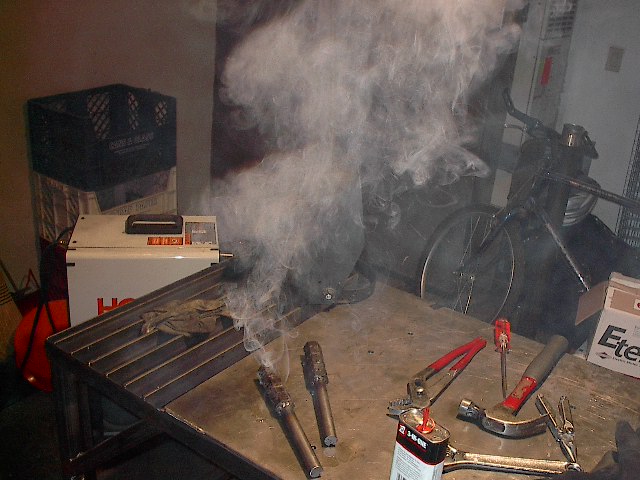

Rebuilt drive axles, modified tensioner arm, un-wired the smoked controller.
Time:
10 hours
Status:
Behind schedule, ten days
|
 |
Day 44:
03.26.2005
Progress:

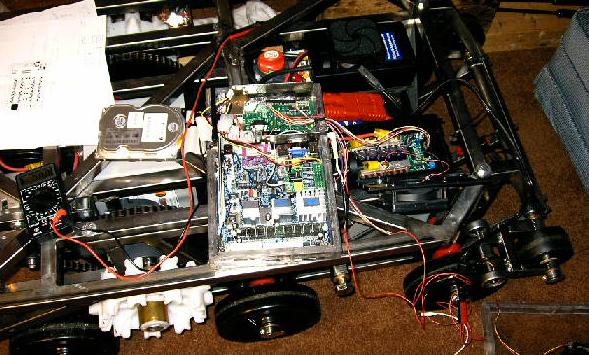

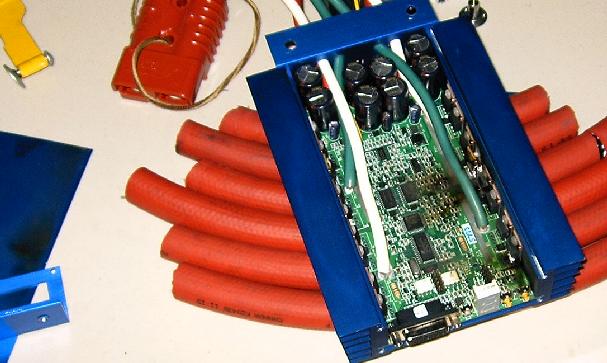

Fixed drive sprockets, major test, broke drive sprockets, many hours of diagnosis, discovered cooked speed controller.
Time:
19 hours
Status:
Behind schedule, ten days
|
 |
Day 43:
03.24.2005
Progress:

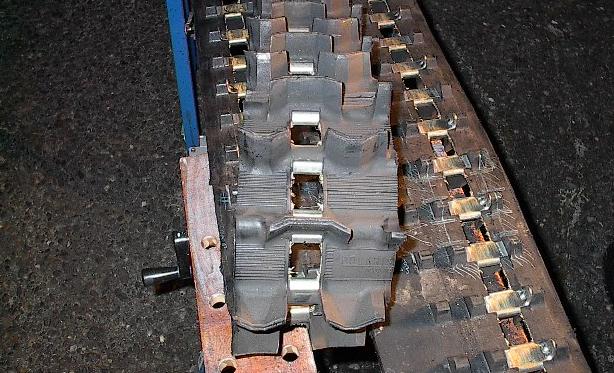

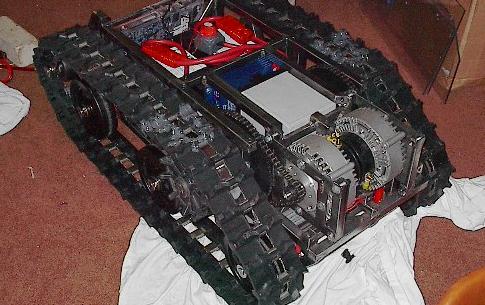

Computer wiring, finished track seams, installed tracks, cooked the serial cable, figured out that we cooked the serial cable.
Time:
17 hours
Status:
Behind schedule, ten days
|
 |
Day 42:
03.22.2005
Progress:
Sewed other track, glued. Finished heat exchanger. Designed a process for loading the track.
Time:
15 hours
Status:
Behind schedule, ten days
|
 |
Day 41:
03.20.2005
Progress:
Bent all of the aluminum tubing for the heat exchanger, and manufactured most of the fittings. Cut Lexan panels for the top.
Time:
11 hours
Status:
Behind schedule, ten days
|
 |
Day 40:
03.19.2005
Progress:

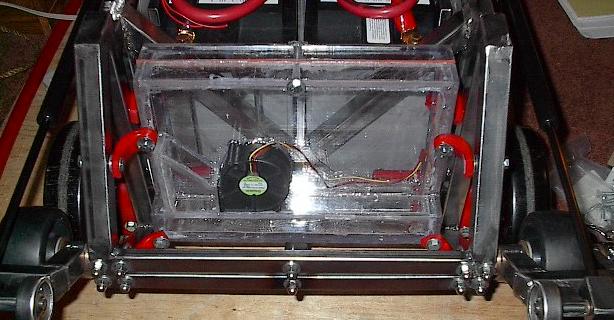

Sewed up one track. Shock mounted the VIA enclosure.
Time:
6 hours
Status:
Behind schedule, ten days
|
 |
Day 39:
03.17.2005
Progress:

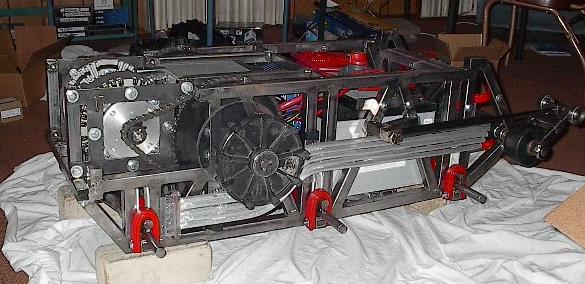

Glued track. Front axle done, tensioners done, battery mounts done.
Time:
9 hours
Status:
Behind schedule, ten days
|
 |
Day 38:
03.15.2005
Progress:

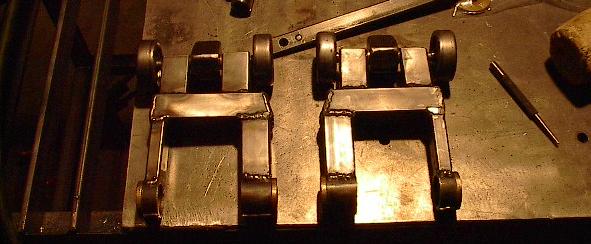

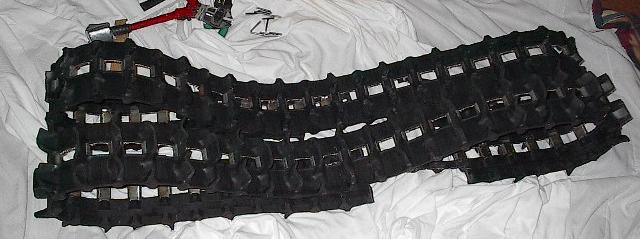

Trimmed the paddles and glued the track. Built the tensioner arms.
Time:
7 hours
Status:
Behind schedule, ten days
|
 |
Day 37:
03.13.2005
Progress:

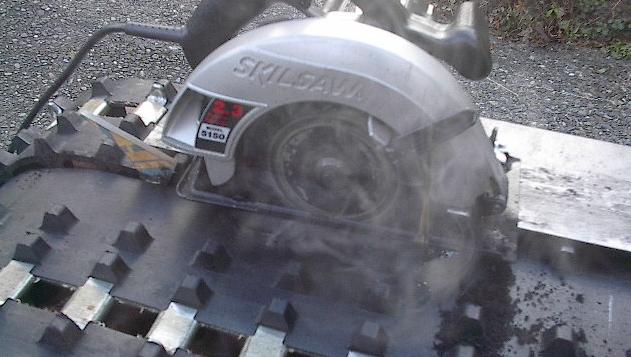

Finished cutting the tracks. Cut half the paddles.
Time:
6 hours
Status:
Behind schedule, nine days
|
 |
Day 36:
03.10.2005
Progress:
Lots of track work, but not done yet.
Time:
6 hours
Status:
Behind schedule, eight days
|
 |
Day 35:
03.09.2005
Progress:

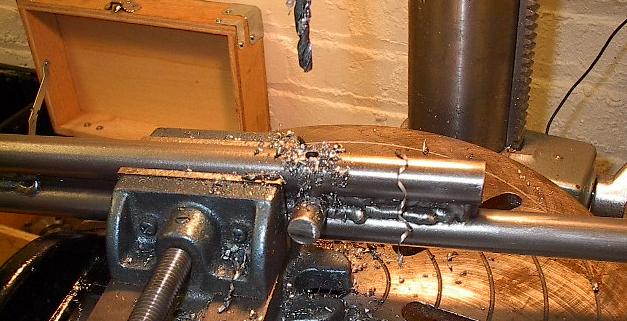

Tensioner arm pivot fitting drilling, VIA enclosure bolt hole drilling, gasket cut.
Time:
3 hours
Status:
Behind schedule, seven days
|
 |
Day 34:
03.08.2005
Progress:
Two and a half of four track cuts.
Time:
3 hours
Status:
Behind schedule, seven days
|
 |
Day 33:
03.06.2005
Progress:

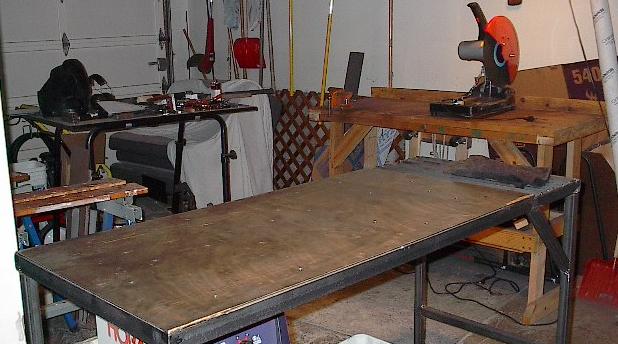

Cleaned shop, finished spring mounts, started tensioner arms.
Time:
5 hours
Status:
Behind schedule, seven days
|
 |
Day 32:
03.05.2005
Progress:

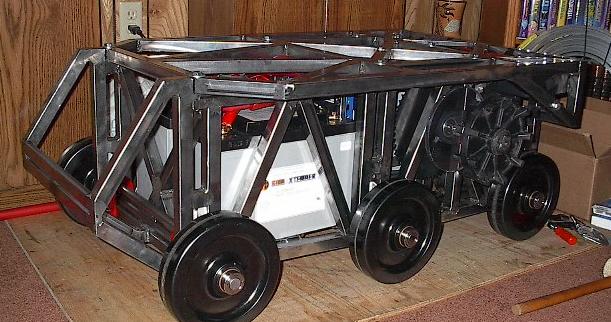

Finished drive axles.
Time:
6 hours
Status:
Behind schedule, seven days
|
 |
Day 31:
03.04.2005
Progress:

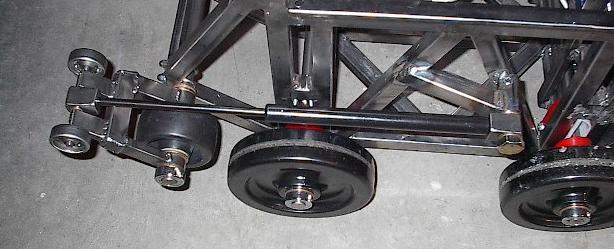

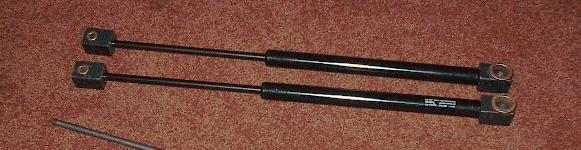

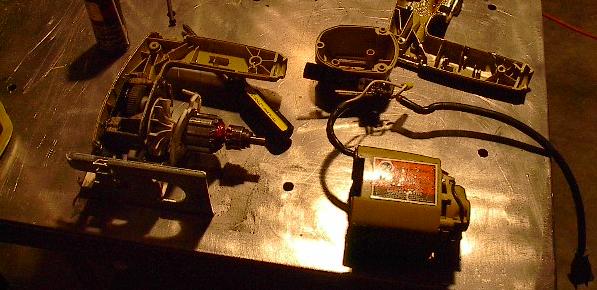

Mostly manufactured nitrogen spring mounts. Fixed chop saw wiring.
Time:
2 hours
Status:
Behind schedule, seven days
|
 |
Day 30:
03.03.2005
Progress:
None
Time:
6 hours
Status:
Behind schedule, seven days
|
 |
Day 29:
03.01.2005
Progress:

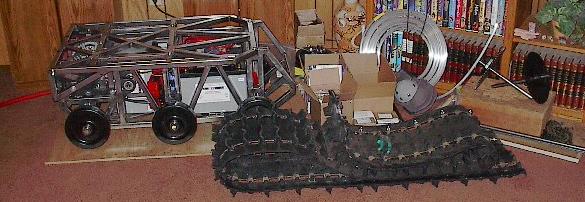

Some cutting, some gluing. Finally got organized.
Time:
3 hours
Status:
Behind schedule, five days
|
 |
Day 28:
02.27.2005
Progress:

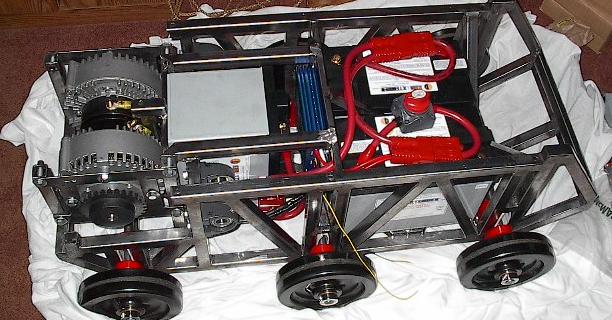

Added final chassis member, mounted and wired 6V batteries, finished suspension, assembled, tested.
Time:
10 hours
Status:
Behind schedule, four days
|
 |
Day 27:
02.24.2005
Progress:

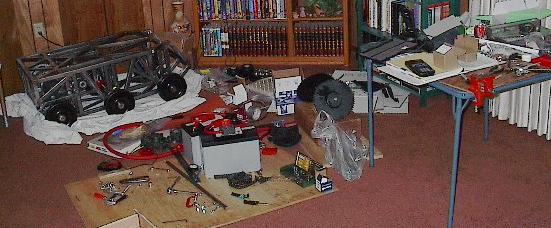

Removed drive axles, manufactured and installed suspension and glides for two axles.
Time:
9 hours
Status:
Behind schedule
|
 |
Day 26:
02.23.2005
Progress:
Finished all three ground axles
Time:
5 hours
Status:
Behind schedule
|
 |
Day 25:
02.22.2005
Progress:

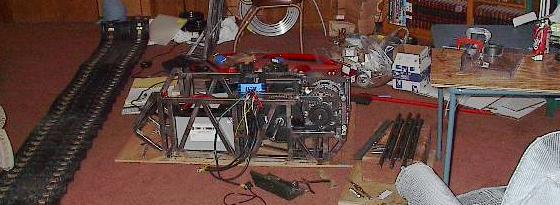

First major test -- successful. More VIA box gluing, cut and marked the track, burned chop-saw, checked electronics fit, sealed speed controller.
Time:
10 hours
Status:
Still behind schedule
|
 |
Day 24:
02.21.2005
Progress:

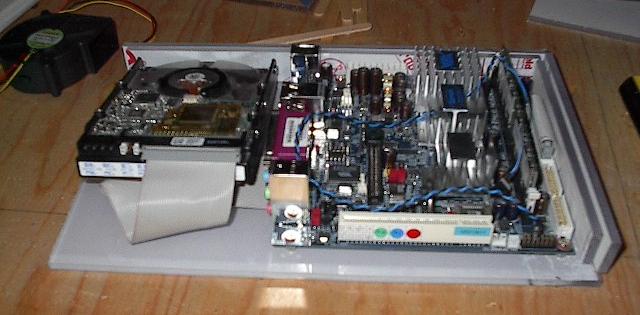

Manufactured the axles and hard disk mounts. VIA box epoxy: round two.
Time:
7 hours
Status:
Still technically behind schedule
|
 |
Day 23:
02.20.2005
Progress:

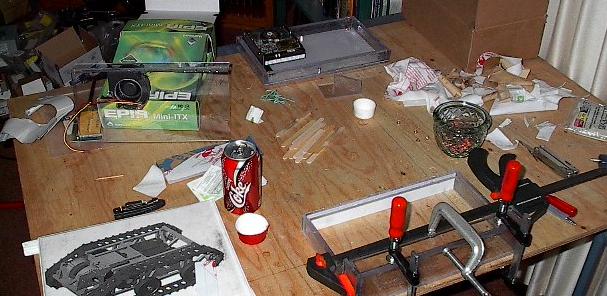

Cut all the plastic for the VIA enclosure, glued the bottom half.
Time:
5 hours
Status:
Behind schedule
|
 |
Day 22:
02.19.2005
Progress:

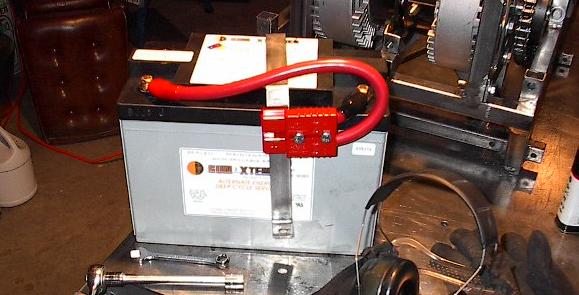

Welded speed controller mounts and manufactured aft battery mount.
Time:
3 hours
Status:
Behind schedule
|
 |
Day 21:
02.17.2005
Progress:

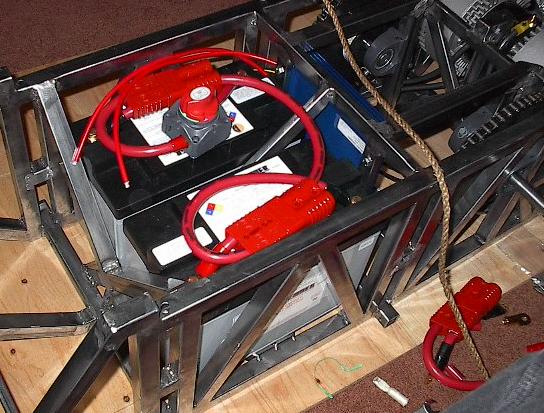

Wired major electrical system.
Time:
10 hours
Status:
Behind schedule
|
 |
Day 20:
02.15.2005
Progress:

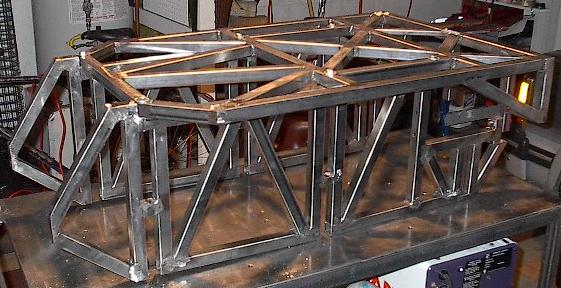

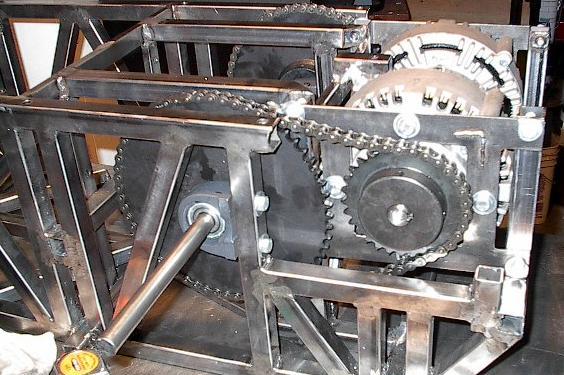

Finished major structure. Mounted motors and drive train. Cut and mounted roller chain.
Time:
7 hours
Status:
One day behind schedule
|
 |
Day 19:
02.13.2005
Progress:
Fixed the motor fit problem (to the extent that I will be able to), made and installed five members.
Time:
3 hours
Status:
Behind schedule
|
 |
Day 18:
02.12.2005
Progress:

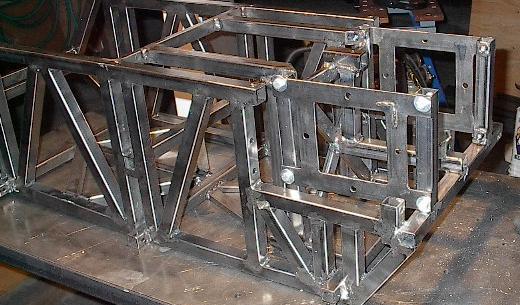

Built motor mounts. Almost finished major structure in aft half of chassis.
Time:
9 hours
Status:
Cautiously pessimistic
|
 |
Day 17:
02.10.2005
Progress:

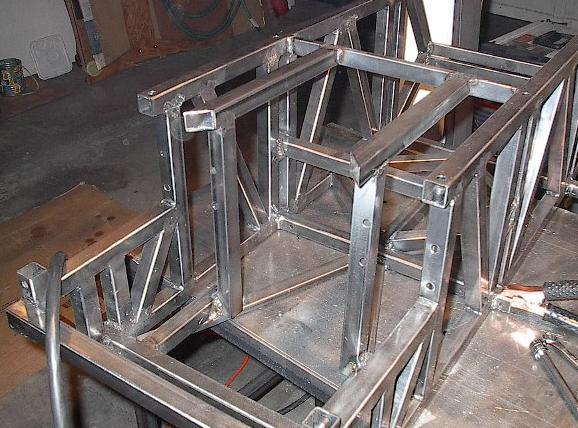

Cut, shaped, and welded 13 members. Aligned drive axle supports, checked battery fit, discovered battery defect.
Time:
9 hours
Status:
Outlook not so good
|
 |
Day 16:
02.08.2005
Progress:
Cut, drilled, shaped, brushed, aligned, and welded eight cross-members.
Time:
5 hours
Status:
A little worried
|
 |
Day 15:
02.06.2005
Progress:

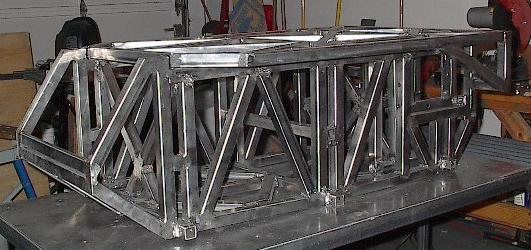

Ground welds, flipped over, welded, ground welds, welded back, welded supports, ground corners, drilled holes, bolted to side panels.
Time:
5 hours
Status:
Still a little worried, but feeling a bit better
|
 |
Day 14:
02.05.2005
Progress:

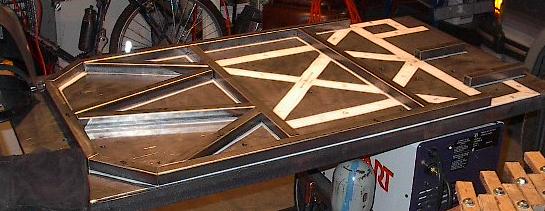

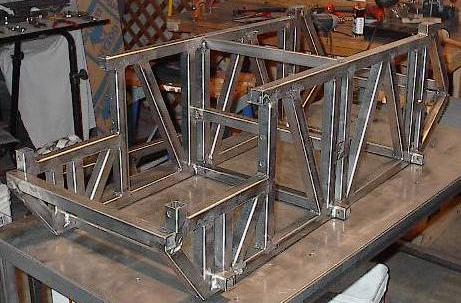

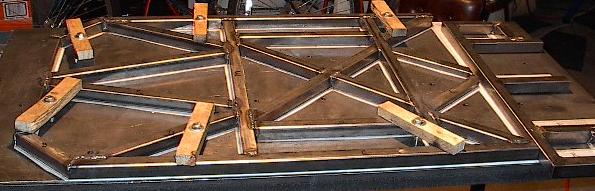

Finished welding the back panel piece and welded the first side of the top panel.
Time:
3 hours
Status:
A little worried
|
 |
Day 13:
02.03.2005
Progress:
Cut remaining members for top platform. Ground all 30 pieces to final fit.
Time:
6 hours
Status:
A little worried
|
 |
Day 12:
02.01.2005
Progress:

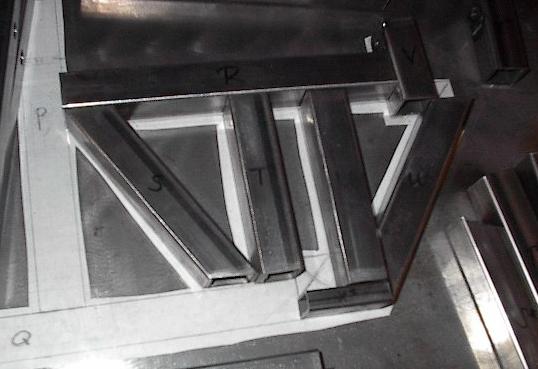

Laminated template to table. Cut and brushed thirteen members.
Time:
2 hours
Status:
On schedule
|
 |
Day 11:
01.31.2005
Progress:

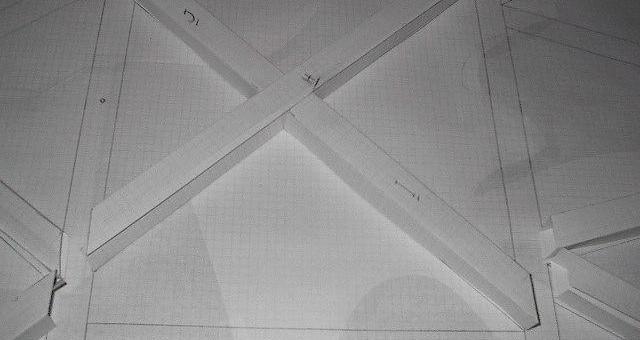

Drew, cut, and folded all individual templates for top panel. Finished master template.
Time:
6 hours
Status:
On schedule
|
 |
Day 10:
01.30.2005
Progress:

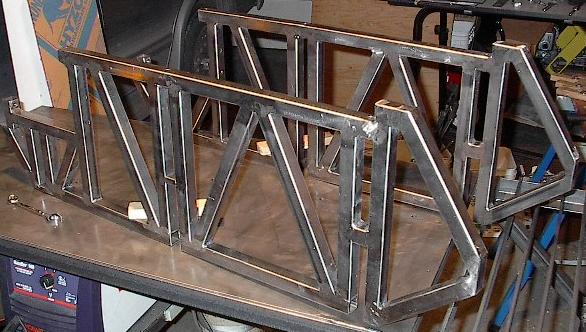

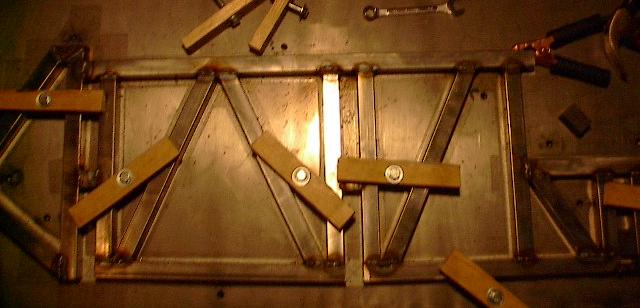

Ground welds, flipped over, welded, grounded, and brushed second side panel. Abuse tested. Patched up cracks and evaluated results.
Time:
4 hours
Status:
On schedule
|
 |
Day 9:
01.29.2005
Progress:

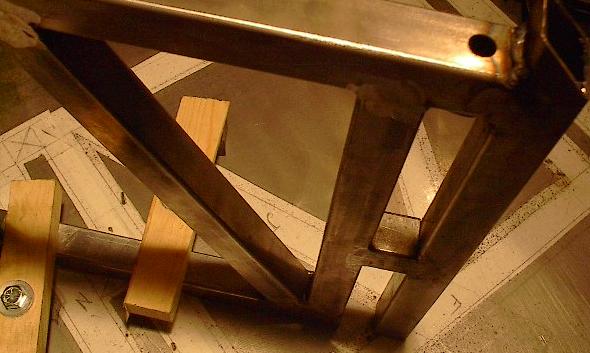

Cleaned second side panel members, touched up fits, completed first side welding.
Time:
3 hours
Status:
On schedule
|
 |
Day 8:
01.27.2005
Progress:

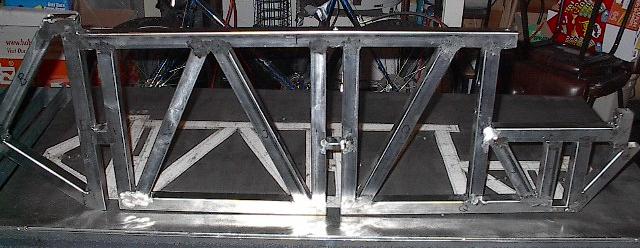

Finished first chassis side panel.
Time:
5 hours
Status:
On schedule
|
 |
Day 7:
01.25.2005
Progress:
Welded roughly one third of one side panel.
Time:
2 hours
Status:
On schedule
|
 |
Day 6:
01.23.2005
Progress:

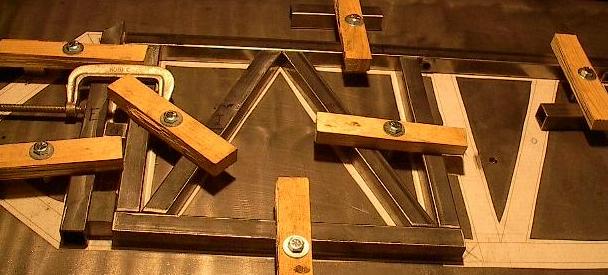

Ground remaining pieces for both sides of the chassis. Drilled, welded, and tapped eight weld nuts for clamping. Aligned eight members for welding.
Time:
4 hours
Status:
On schedule
|
 |
Day 5:
01.22.2005
Progress:
Ground 38 steel members to shape.
Time:
3 hours
Status:
On schedule
|
 |
Day 4:

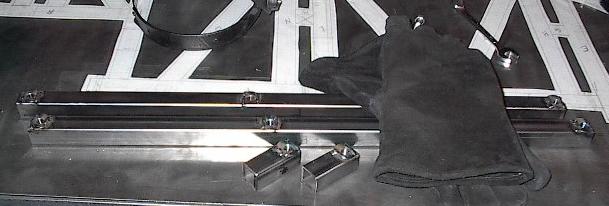

01.20.2005
Progress:
Welded eight weld nuts.
Time:
2 hours
Status:
On schedule
|
 |
Day 3:
01.19.2005
Progress:

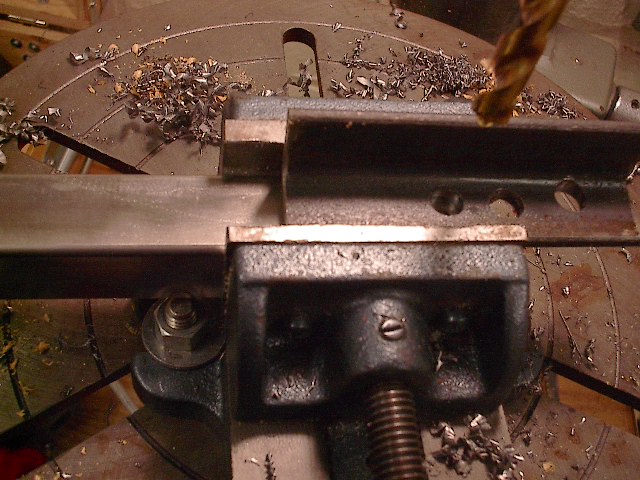

Drilled some holes. It took much longer than it should have. Reasonably happy with the result.
Time:
2 hours
Status:
On schedule
|
 |
Day 2:
01.18.2005
Progress:
Cut all of the remaining steel for the chassis sides. Marked all pieces for final fitting.
Time:
4 hours
Status:
On schedule
|
.JPG) |
Day 1:
01.17.2005
Progress:

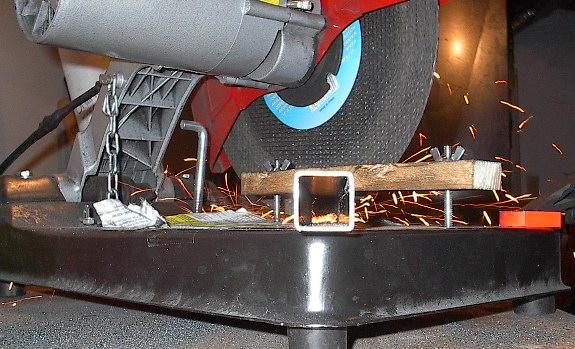

Cut and cleaned most of the steel for one chassis structure plane. Marked pieces for final fitting.
Time:
5 hours
Status:
On schedule
|
